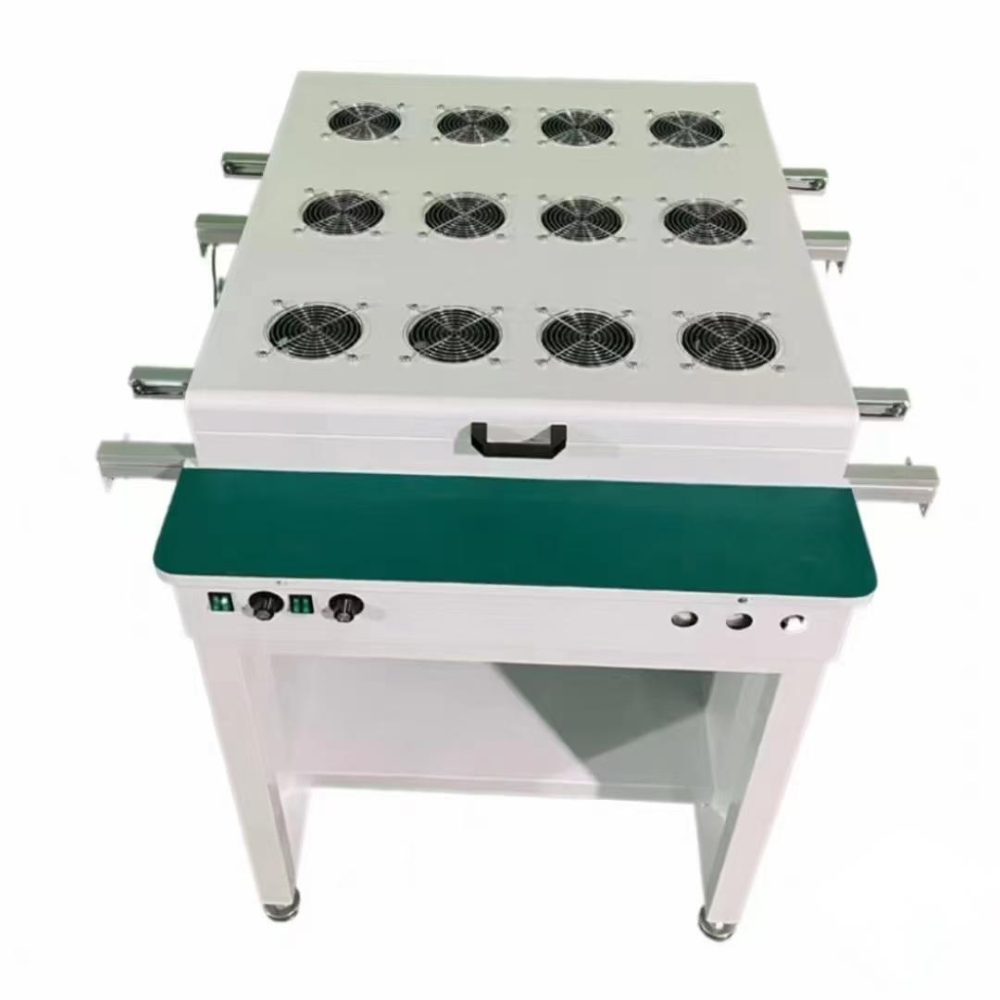

SMT Dual-track Cooling Conveyor
1.This equipment is usually used to transfer and cooling PCBA after reflow soldering.
2.Rugged steel design, improves equipment stability .
3.Smooth stainless steel screw to adjust the width of the rail.
4.Variable speed control.
5.Circuit board testing mode.
6.Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.
7.Heavier bottom design, not easily shift.
8.Machine length can be customized.
9.Compatible with SMEMA interface.
*: Option: Dual rail
| Specification: | ||||||
| Model | SCC-500 | SCC-600 | SCC-1000 | SCC-1200 | SCC-1500 | SCC-2000 |
| Rail Length(mm) | 500 | 600 | 1000 | 1200 | 1500 | 2000 |
| Dimension(mm) | 500*700*950 | 600*700*950 | 1000*700*950 | 1200*700*950 | 1500*700*950 | 2000*700*950 |
| PCB Width | 50 to 350 mm | |||||
| PCB Direction | L to R or R to L | |||||
| Speed | Adjustable | |||||
| Switch | Foot Switch | |||||
| Control System | Industrial Control Module System（Panasonic PLC Option） | |||||
| Lighting | Optional | |||||
| SOP Rack | Optional | |||||
| Weight | 60 Kg | 60 Kg | 65 Kg | 95 Kg | 135 Kg | 160 Kg |
