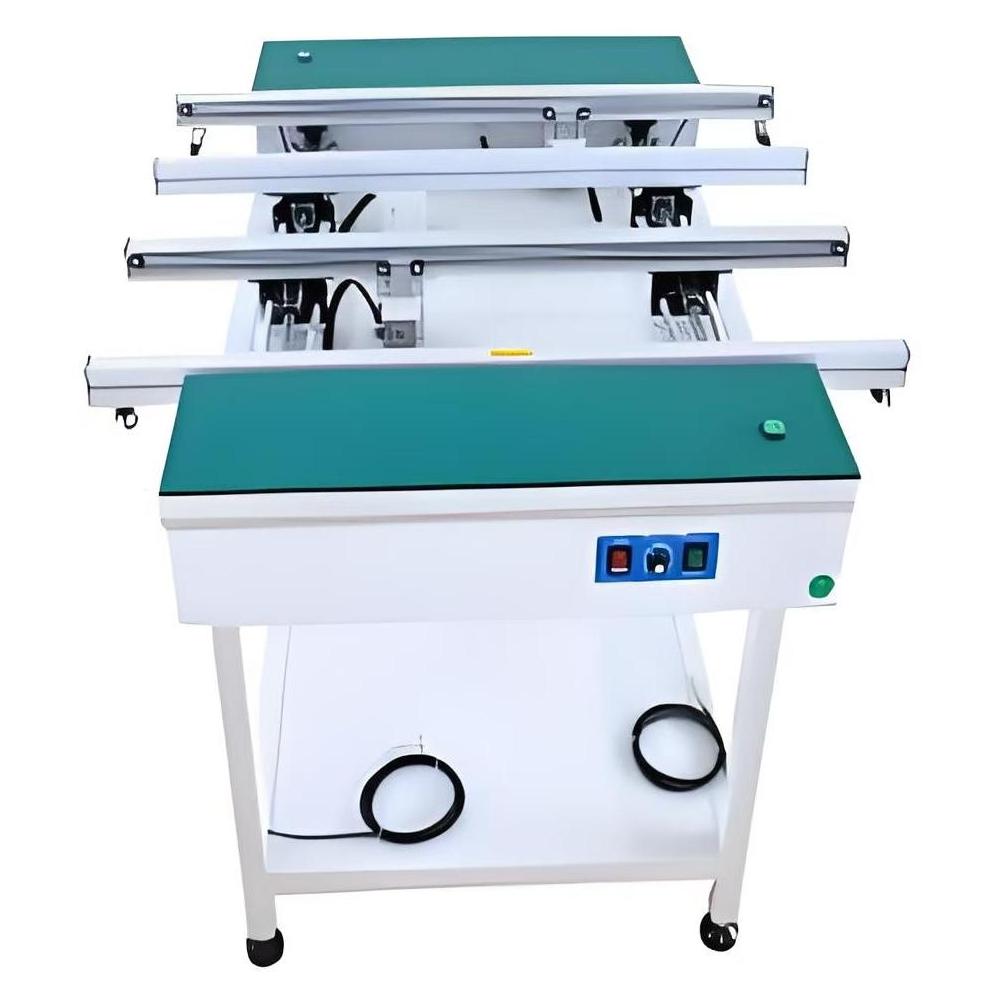

SMT Dual-track Inspection Conveyor
1.Modular design, optional assembly as per client’s requirement.
2.Rugged steel design, improves equipment stability .
3.Smooth stainless steel screw to adjust the width of the rail.
4.Variable speed control.
5.Circuit board testing mode.
6.Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.
7.Heavier bottom design, not easily shift.
8.Machine length can be customized.
9.Compatible with SMEMA interface.
| Specification | |||
| Model | SC-500D | SC-600D | SC-1000D |
| Rail Length(mm) | 500 | 600 | 1000 |
| Dimension(mm) | 500*990*950 | 600*990*950 | 1000*990*950 |
| Max.PCB Width Dual-lane | 50 to 270 mm*2 | ||
| Max.PCB Width Single -lane | 510mm | ||
| PCB Direction | L to R or R to L | ||
| Speed | Adjustable | ||
| Switch | Foot Switch | ||
| Control System | Industrial Control Module System（Panasonic PLC Option） | ||
| Lighting | Optional | ||
| SOP Rack | Optional | ||
| Platform Material | ESD Rubber Mat | ||
| Communication | SMEMA for both in & out | ||
| Weight | 70kg | 80kg | 95kg |
