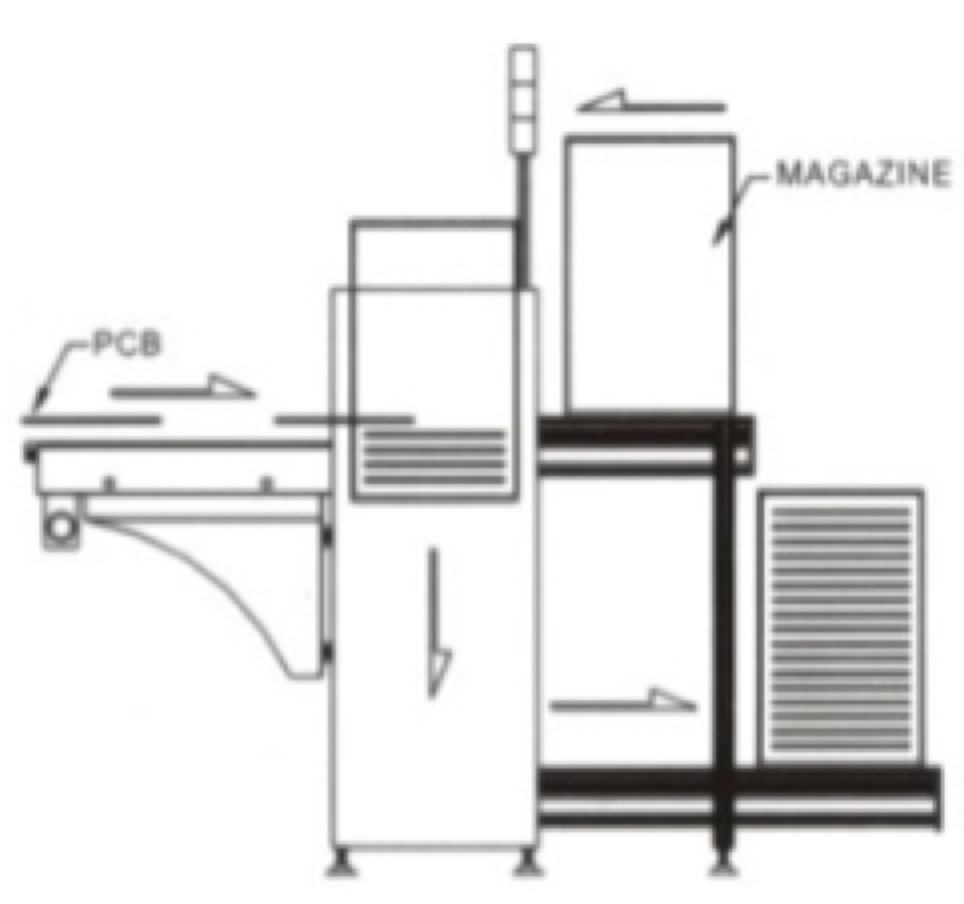

SMT Magazine Unloader
1.Strong,firm and stable design.
2.Touch screen and Siemens PLC control.
3.Top&bottom pneumatic clamps to secure magazine rack.
4.No PCB breakage guaranty because of special gas circuit design.
5.Automatical diagnosing fault code display function.
6.Wear-resistant cable and have long service life.
7.Compatible SMEMA interface.
| Specification | |||||
| Model | UL-250 | UL-330 | UL-390 | UL-460 | UL-610 |
| Dimension(mm) | 1630*765*1250 | 1965*845*1250 | 2160*909*1250 | 2160*970*1250 | 2510*1230*1250 |
| PCB Size(mm) | 50*50-330*250 | 50*50-445*330 | 50*50-530*390 | 50*50-530*460 | 50*50-610*460 |
| Rack Size(mm) | 355*320*563 | 460*400*563 | 535*460*570 | 535*530*570 | 630*530*570 |
| Time Feed PCB | Seconds 6 Approx. or Specify | ||||
| Indexing Pitch | 10.20.30.40mm or Specify | ||||
| Control System | PLC | ||||
| Power | Max 300 VA | ||||
| Air Supply | 4-6bar, 10ltr/Min Max | ||||
| Transport Height | 900±20mm（or Customer Specified） | ||||
| PCB Direction | L to R or R to L | ||||
| Communication | SMEMA for Both In & Out | ||||
| Power Supply | 1 PH AC 220V 50/60Hz (Option:110V to 380V) | ||||
| Weight | 180 Kg | 240 Kg | 300 Kg | 360 Kg | 450 Kg |
