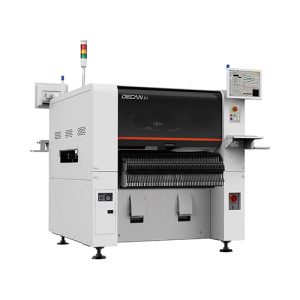

Used Samsung DECAN S1 Flexible SMT Placement
❙ Introduce of Samsung SMT Placement
Hanwha high speed advance pick and place machine, Hanwha modular chip mounter, Hanwha SMT placement, with 47,000 CPH.
❙ Specification of Samsung SMT Placement
Samsung DECAN S1Fast & Flexible Mounter
Speed : 47,000 CPH (Optimum)
↔Spindle/Gantry : 10 Spindles/1Gantry
↔Parts: 03015~□55mm(H15),L75mm
↔Accuracy : ±28μm @ Cpk≥ 1.0/Chip
±30μm @ Cpk≥ 1.0/IC
↔Max.PCB : L510xW510 (Standard)
L1,500xW460 (Max)
↔Highest performance among chip Mounters of the same class
↔Places microchips stably
| Model | DECAN S1 | |
| Alignment | Fly Camera + Fix Camera | |
| The number of spindles | 10 spindles x 1 Gantry | |
| Placement Speed | 47,000 CPH (Optimum) | |
| Placement Accuracy | ±28μm @ Cpk≥ 1.0 | |
| Component Range | Fly Camera | 03015 ~ □16mm Fix Camera |
| 42mm ~ □55mm (MFOV) L55mm ~ L75mm Connector (MFOV) | ||
| Max. Height | 10mm (Fly), 15mm (Fix) | |
| PCB Size (mm) | Min. | 50(L) x 40(W) |
| Max. | 510(L) x 510(W) Option~ Max. 1,500(L) x 460(W) | |
| PCB Thickness (mm) | 0.38 ~ 4.2 | |
| Feeder Capacity (8mm standard) | 60ea / 56ea (Fixed feederbase / Docking Cart) 120ea / 112ea (Fixed feederbase / Docking Cart)- Option | |
| Utility | Power | 3Phase AC200 / 208 / 220 / 240 / 380 / 415V Max. 3.5kVA |
| Air Consumption | 5.0~7.0kgf/cm2 50Nℓ/min (Vacuum Pump) | |
| Weight (kg) | Approx. 1,600 | |
| External Dimension (mm) | 1,430(L) x 1,740(D) x 1,485(H) | |
