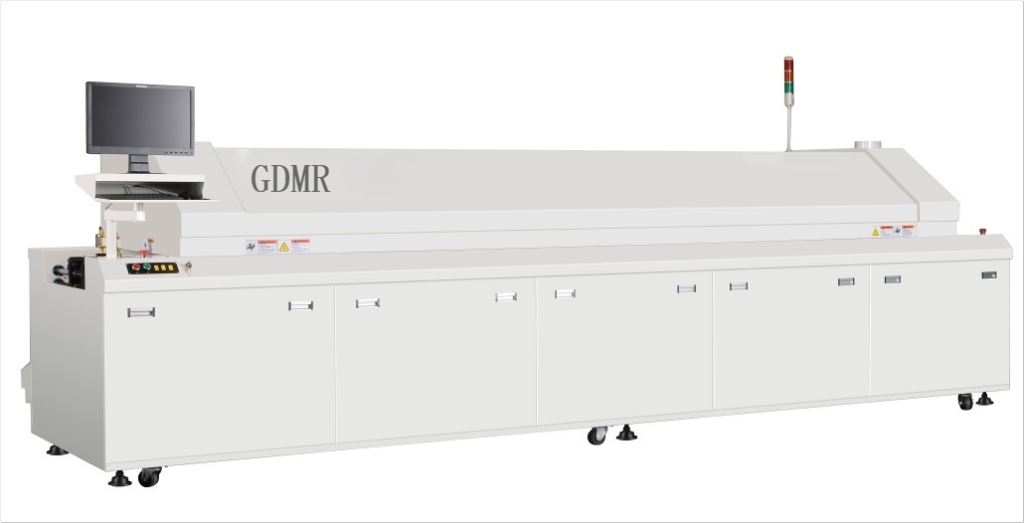

❙ Introduce of Reflow Oven M8/M10
M series lead-free reflow oven GDMR’s mature product after years of market testing.M series Reflow oven has maintained a larger share of the market for many years. Its unparalleled heating performance and temperature control system meets the requirements of various welding processes, It is GDMR’s crystallization of years technical research and development. M series Lead-free reflow is high-end reflow products committed to keeping up with market demand to enhance customers competitiveness.Its new design concept fully meets the needs of increasingly diverse processes, And considering the future direction of the industry, entirely suitable for communications, automotive electronics, home appliances, computers and other consumer electronic products .
❙ Specification of Reflow Oven M8/M10
| S – Standard, O – Option, M – Manual, A – Auto, N/A – Not Availible) | |||||
| Specifications | M8 | M10 | Specifications | M8 | M10 |
| Dimension (L*W*H)mm | 5000x1250x1490 | 5800x1250x1490 | Ups | O | |
| Standard Color | Computer Grey | Conveyor Direction | L→R (Option: R→L) | ||
| Weight | Approx1600KG | Approx.1800KG | Computer | Lenovo | |
| Number Of Heating Zones | Up8/Botto8 | Up10/Botto10 | Max.Width Of PCB | 400mm | |
| Length Of Heating Zones | 3121mm | 3891mm | Temperature Deviation | ± 1.0℃ | |
| Rail Width Adjustment | M(option:A) | Length Of Cooling Zones | 600mm | ||
| Exhaust Volume | 10M3/minx2 Exhausts | Center Support | O | ||
| Control System | PLC+Computer | Temperature Control Precision | ± 1.0℃ | ||
| Temperature Control Method | PID + SSR | Max. Temp. Gap Between Preheat Zones | 40℃ | ||
| Transmission Agent | Chain + Mesh | Temperature Alarm | S | ||
| Electric Supply Required | 3phase,380V 50/60Hz | Siemens PLC | S | ||
| Power For Warm Up | 55KW | 64KW | Lubrication Auto-Afflux | S | |
| Power Consumption | 8KW | 12KW | On Line Editing | S | |
| Warming Time | Approx.25 minute | Temp. Thermocouple Slot | S | ||
| Temp. Setting Range | Room Temp.– 300℃ | Rail Number | 1 Lane | ||
| Conveyor Height | 900+/-20mm | Components Clearance | Top/ Bottom is 25mm | ||
| Conveyor Speed Range | 300～2000mm/mi | Number of Cooling Zones | 2 | ||
| Fixed Rail Side | Front Fixed (Option:Rear Fixed) | Process Data & Status Storage | S | ||
| Cooling Method | Forced-Air Motor and fan (Standard) | Max.Temp.Gap Between Pre & Refl Zone | 50℃ | ||
