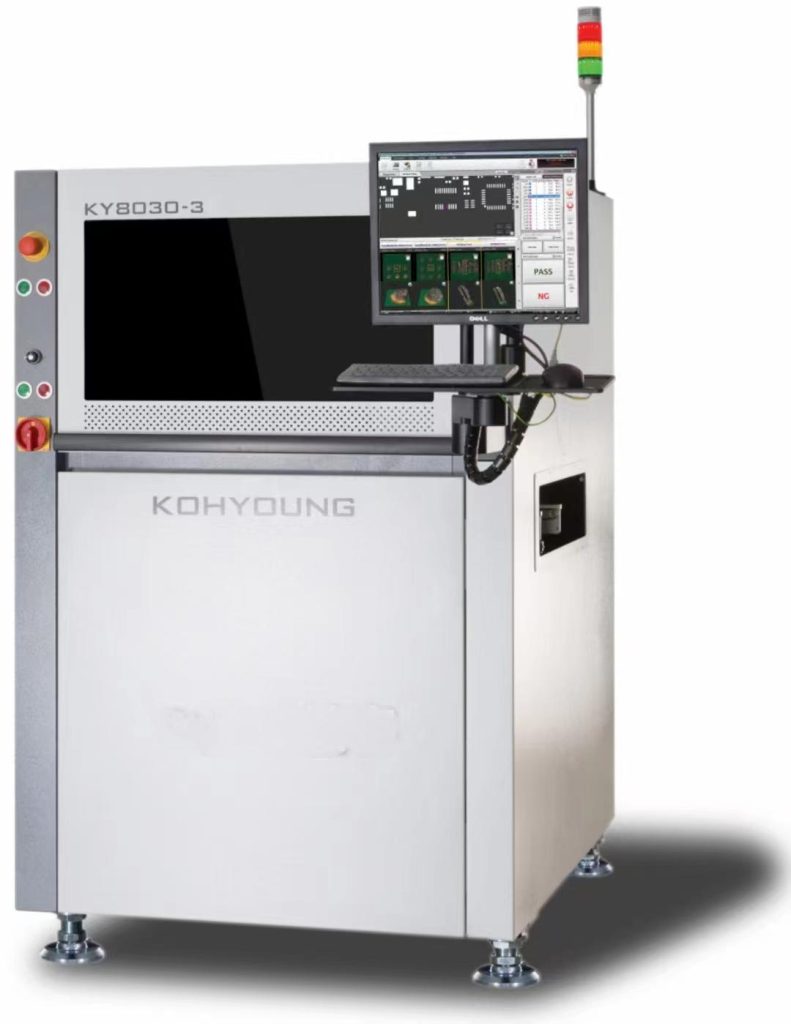

SMT On-line 3D Solder Paste Inspection KOHYOUNG 8030-3
❙ Introduce of SMT On-line 3D Solder Paste Inspection KY8030-3
1.Unmatched Inspection Speed with Guaranteed Best Accuracy
2.Active Warp Compensation
3.Automated Solder Paste Dispensing: Auto-Rework
4.KSMART Solutions: True 3D Measurement-based Process Control System
5.Zero-defect through AI-Powered Koh Young Process Optimizer (KPO)
❙ Specification of SMT On-line 3D Solder Paste Inspection KY8030-3
| Model | M | L | XL | |||
| Single Lane | Dual Lane | Single Lane | Dual Lane | Single Lane | Dual Lane | |
| Max.PCB Size (XxY) | 330×330 mm (12.9×12.9in) | Single Mode° | 510×510 mm (20.0×20.0in) | Single Mode° | 850×690 mm (33.4×27.1in) | Single Mode |
| 330×580 mm (12.9×22.8in) | 510×580 mm (20.0×22.8in) | 850×580 mm (33.4×22.8in) | ||||
| Dual Mode | DualMode | Dual Mode | ||||
| 330×325.5 mm (12.9×12.8in) | 510×320 mm (20.0×12.5in) | 850×320 mm (33.4×12.5in) | ||||
| Min.PCB Size | 50×50 mm(1.9×1.9 in) | 70×70mm(2.7×2.7 in) | ||||
| PCB Thickness | 0.4～4 mm(0.01～0.15in) | 0.4～5mm(0.01～0.19 in) | 0.6～8mm(0.02～0.31 in) | |||
| Max.PCB Weight | Standard:2kg(4.4 lbs),Heavy weight option:5kg(11.0 lbs) | 10kg(22.0 lbs) | ||||
| Machine Weight | 550 kg (1212.5 Ibs) | 600 kg (1322.7 lbs) | 600 kg (1322.7 lbs) | 700kg (1543.2 lbs) | 850kg (1873.9 lbs) | 900kg (1984.1lbs) |
| Bottom Clearance | 50 mm(1.9in) | |||||
| Supplies | 220 Vac±10%,50/60Hz,1 Phase,5Kgf/cm²(0.45MPa) | |||||
| W | 820mm(32.2in) | 1000 mm(39.3in) | 1350 mm(53.1in) | |||
| D | 1265mm(49.8in) | 1445 mm(56.8in) | 1265 mm(49.8in) | 1445mm(56.8in) | 1445mm(56.8in) | |
| H | 1627mm(64.0in) | |||||
