❙ Introduce of SMT Online 3D SPI MR-8080

1. Solve shadow effect interference in solder paste 3D detection. The combination of RG 2D light source perfectly handles high contrast substrates, such as black substrates, ceramic substrates, etc. Using red, blue, and green light, color 2D images can be provided.
2, high resolution image processing system: ultra-high frame number 5 million pixels industrial CCD camera, with high-end telecontrol lens, support 01005 solder paste rapid and stable detection. At the same time, it provides a variety of different detection accuracy such as 15um, 18um, 20um, etc., to meet the requirements of customer’s product diversity and detection speed.
3, fast Gerber import and programming software, can achieve the industry’s fastest 5-minute programming; Manual Teach function is convenient for users to program and detect when there is no Gerber data.

4, Z-axis real-time dynamic copying: the characteristics of PSLM provide real-time dynamic tracking of PCB warping changes, perfect solution to flexible circuit boards and PCB warping problems.

5, powerful process statistical analysis function (SPC)

6, repeatability accuracy <<10%(6 Sigma).

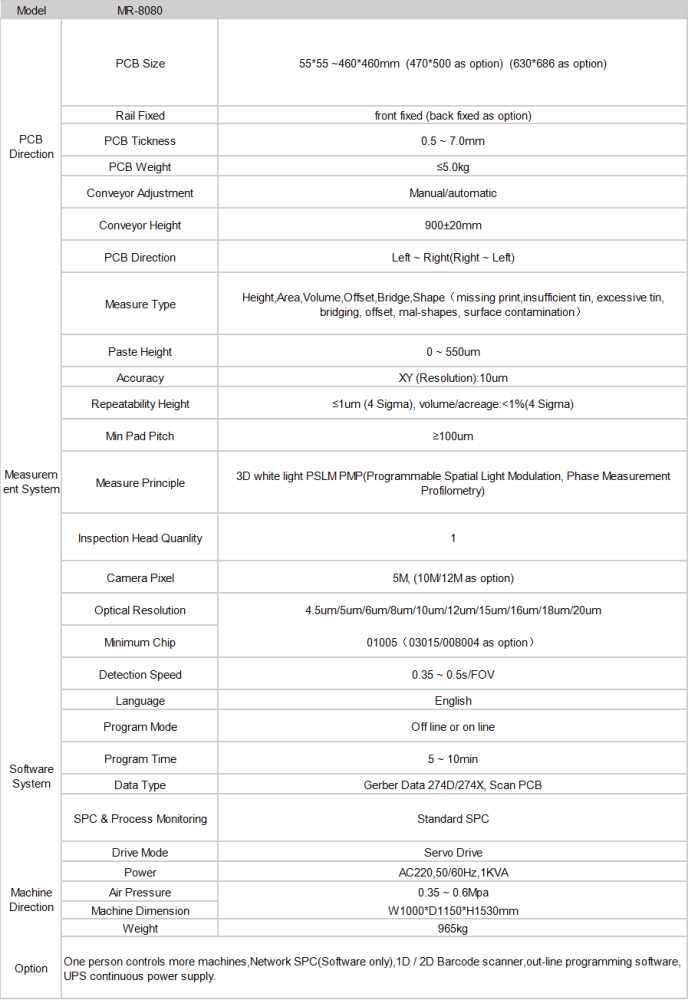

❙ Specification of SMT Online 3D SPI MR-8080

Model		MR-8080
PCB Direction	PCB Size	5555 ~460460mm (470500 as option) (630686 as option)
	Rail Fixed	front fixed (back fixed as option)
	PCB Tickness	0.5 ~ 7.0mm
	PCB Weight	≤5.0kg
	Conveyor Adjustment	Manual/automatic
	Conveyor Height	900±20mm
	PCB Direction	Left ~ Right(Right ~ Left)
Measurement System	Measure Type	Height,Area,Volume,Offset,Bridge,Shape（missing print,insufficient tin, excessive tin, bridging, offset, mal-shapes, surface contamination）
	Paste Height	0 ~ 550um
	Accuracy	XY (Resolution):10um
	Repeatability Height	≤1um (4 Sigma), volume/acreage:<1%(4 Sigma)
	Min Pad Pitch	≥100um
	Measure Principle	3D white light PSLM PMP(Programmable Spatial Light Modulation, Phase Measurement Profilometry)
	Inspection Head Quanlity	1
	Camera Pixel	5M, (10M/12M as option)
	Optical Resolution	4.5um/5um/6um/8um/10um/12um/15um/16um/18um/20um
	Minimum Chip	01005（03015/008004 as option）
	Detection Speed	0.35 ~ 0.5s/FOV
Software System	Language	English
	Program Mode	Off line or on line
	Program Time	5 ~ 10min
	Data Type	Gerber Data 274D/274X, Scan PCB
	SPC & Process Monitoring	Standard SPC
	Drive Mode	Servo Drive
Machine Direction	Power	AC220,50/60Hz,1KVA
	Air Pressure	0.35 ~ 0.6Mpa
	Machine Dimension	W1000D1150H1530mm
	Weight	965kg
Option	One person controls more machines,Network SPC(Software only),1D / 2D Barcode scanner,out-line programming software, UPS continuous power supply.
