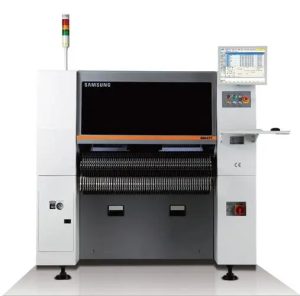

Used SAMSUNG SM471 Plus Fast Pick and Place Machine

❙ Introduce of Hanwha Pick and Place Machine

High speed SMT line machine Hanwha SMT pick and place machine, Hanwha placement, Hanwha chip shooter with high quality and professional SMT solutions.

❙ Specification of Hanwha Pick and Place Machine

ModelSM471 PlusSM481 PlusSM482 Plus
Spindles10 Spindles ×2 Gantry10 Spindles ×1 Gantry6 Spindles ×1 Gantry
Placement Speed78,000CPH(Optimum)40,000CPH(Optimum)30,000CPH(Optimum)
Placement Accuracy±40μm@μ±3σ±40μm@μ±3σ±40μm@μ±3σ
Applicable Parts0402 ~ 14mm(H 12mm)0402 ~ 42mm(H 15mm)0402 ~ 55mm(H 15mm)
Applicable PCBMax. 510(L) x 460(W)(Standard)Max. 460(L) x 400(W)(Standard)Max. 460(L) x 400(W)(Standard)
Max. 610(L) x 460(W)(Option)Max. 1500(L) x 460(W)(OptionMax. 1200(L) x 510(W)(Option)
Dimension(mm)1650×1690×14581650×1680×15301650×1680×1458
